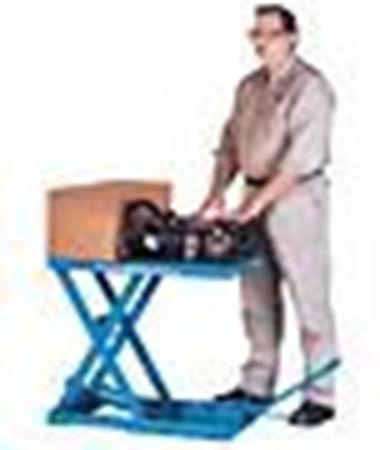

X Series Lift Tables
X-Series Scissor Lift Tables are rugged, compact hydraulic lifts with capacities of 440 to 1,650 lbs., travel distance up to 45 in. and platform sizes from 18 x 25.5 to 20 x 40 inches. X Series CompacLift™ tables are most widely used in machine tool or other production line manufacturing activities requiring heavy-duty lifting and positioning within a confined area. With additional emphasis placed on ergonomics and the reduction of repetitive lifting activities. The XSeries meets an ever-growing need for lifting assistance. Basic design features a manual foot pump operation to afford the opportunity of economical solutions to lifting problems. Electric/Hydraulic and Air/Hydraulic units are also available in most capacities.
Standard Features
- Compact design
- 440 to 1,650 lbs. capacities
- Rugged construction with heavy gauge steel and sturdy continuous welds throughout
- Steel work platforms
- Superior hydraulic systems proven on a range of Bishamon lift products
- Hand control on electric models
- Wide range of table sizes
- Removable & storable operator’s foot pedal and lowering control on basic models
- Quality baked enamel finish
Item # |
Travel |
Capacity |
Table Size (WxL) |
Lowered Height |
Raised Height |
Strokes to Max. Height C Models |
|---|---|---|---|---|---|---|
| X-20C |
16.0 in |
440 lb |
19.5 x 25.5 in |
5.00 in |
21.00 in |
28 |
| X-25C |
22.0 in |
550 lb |
19.5 x 32.0 in |
5.00 in |
28.00 in |
42 |
| X-25E |
22.0 in |
550 lb |
19.5 x 32.0 in |
6.00 in |
28.00 in |
N/A |
| X-25P |
22.0 in |
550 lb |
19.5 x 32.0 in |
6.00 in |
28.00 in |
N/A |
| X-30SC |
45.0 in |
660 lb |
20.0 x 40.0 in |
9.25 in |
54.25 in |
54 |
| X-30SE |
45.0 in |
660 lb |
20.0 x 40.0 in |
9.25 in |
54.25 in |
N/A |
| X-30SP |
45.0 in |
660 lb |
20.0 x 40.0 in |
9.25 in |
54.25 in |
N/A |
| X-50C |
25.5 in |
1100 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
46 |
| X-50E |
25.5 in |
1100 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
N/A |
| X-50P |
25.5 in |
1100 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
N/A |
| X-50SE |
25.5 in |
1100 lb |
18.0 x 25.5 in |
8.25 in |
33.75 in |
N/A |
| X-50SP |
25.5 in |
1100 lb |
18.0 x 25.5 in |
8.25 in |
33.75 in |
N/A |
| X-75C |
25.5 in |
1650 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
67 |
| X-75E |
25.5 in |
1650 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
N/A |
| X-75P |
25.5 in |
1650 lb |
20.0 x 40.0 in |
6.00 in |
31.50 in |
N/A |
