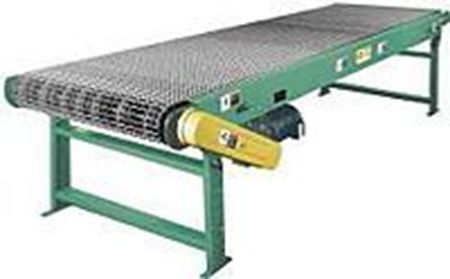

Wire Mesh Belt Conveyor

  • Drying operations
  • Wet or oily products
  • Hot or cold parts from ovens or freezers
  • One direction operation
Belt – ½” x 1” flat wire belt. Available in widths of 12", 18", 24" and 36".
Bed – 6-1/2" deep x 12 gauge powder painted formed channel with 1.9” dia. rollers mounted on 6” centers.
Drive Sprockets – 6” pitch diameter cast iron sprockets machined for 1 3/16” diameter shaft.
Tail Pulley - 4" diameter with 4” pitch diameter cast iron sprockets on each end of pulley, 1 3/16” diameter shaft.
Snub Roller – Adjustable 2” diameter roller located directly behind drive sprockets and tail sprockets.
Return Idlers – 1.9” diameter, adjustable, on 10’-0” centers.
Take-Up - 6" long screws located at tail pulley to tighten belt.
Bearings - Sealed and pre-lubricated with heavy duty housing.
Floor Supports – Adjustable 31” to 45” from floor to top of belt.
Speed Reducer - C-Face mounted heavy duty worm gear reducer.
Motor - 1/2 HP 230/460-3-60 TE motor.
Belt Speed - 60 FPM constant.
Capacity – Maximum load per linear foot of conveyor – 75 pounds.
Various options are available. Contact us for more information.
