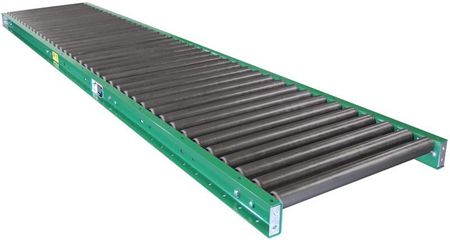

254SR/SRC Gravity Roller Conveyor

Frame - 3-1/2" deep x 1-½” x 10 gauge powder painted formed steel with bolted cross members. Rollers set ¼” high.
Rollers - 2-1/2” diameter x 14 gauge steel tubing with swagged ends to provide firm bearing seat. 2-1/2” to 1-11/16” tapered rollers available for curves.
Bearings - Labyrinth sealed, lightly oiled.
Axles - 11/16" hex shaft, spring loaded.
Couplings - Butt type, for bolting sections together.
Widths - From 13” between frames (B/F) and wider in two inch increments up to 27”, also 31”, 33”, 37”, 39”, 45”, 51”, and 55” B/F.
Lengths - Standard lengths are 5' and 10'.
Capacity - 350 lbs. per roller on narrow sizes with 1,350 lbs. maximum distributed live load on 10’ sections; 3,300 lbs. maximum live load on 5’ section.
Curve Degree - 45° and 90° with 2’-8 ½” inside radius for widths up to 27” B/F. 4’-0” inside radius for 31”, 33”, 37”, and 39” B/F.

Tapered roller curves are available.
Sort by
Display
per page

Item #

Type

Length

Curves

254SR

Straight Model

5 ft
10 ft

N/A

254SRC

Curve Model

N/A

45 º
90 º
